Reynoldsdale State Fish Hatchery

Reynoldsdale State Fish Hatchery

Institution Type:

Government

Project Class:

Demolition, Industrial Facility, Infrastructure

Project Delivery System:

Multiple Primes

Construction Type:

New Construction

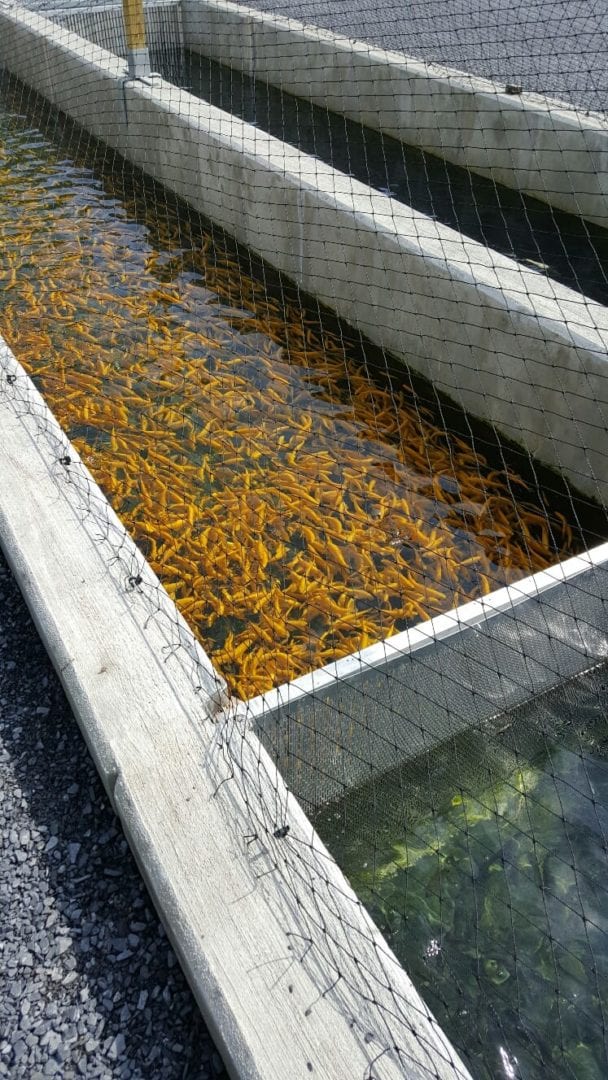

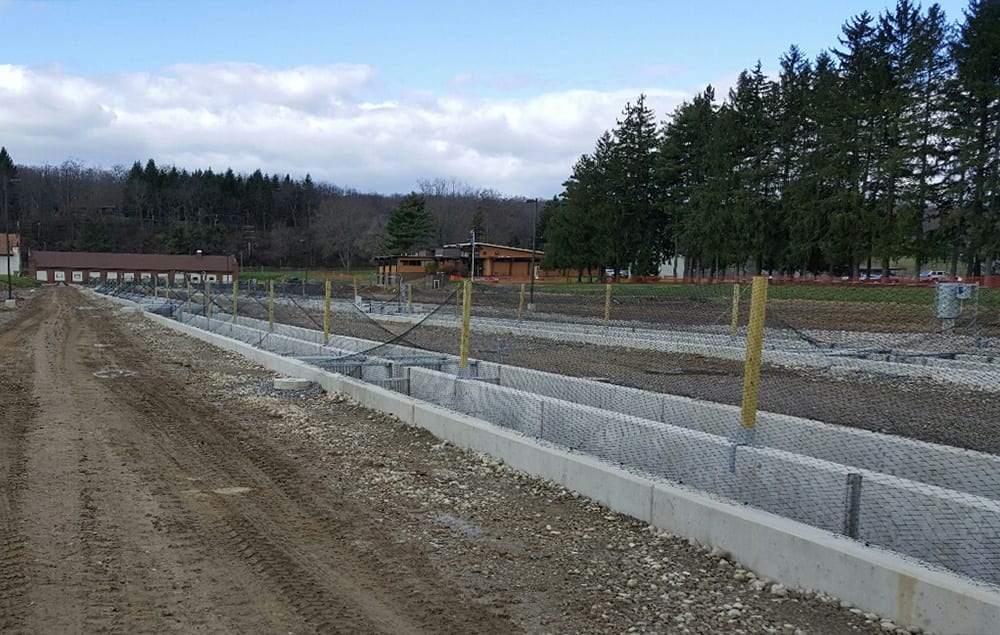

Earthen ponds were demolished for 1900 linear feet of concrete fish raceways. A system collects and treats waste from the fish, including a pump station with 6 inch diameter grinder pumps into a treatment facility. Treated by a ballasted flocculation system inside, clean water is pumped back out and sludge is pumped into a 40 foot diameter storage tank. The pre-engineered metal building houses all treatment equipment, controls, and monitoring electronics. Remote oversight is provided to the administration building with use of fiber optics. Interconnecting pipe two feet wide was installed in depths up to 12 feet to transfer water from the upper raceway to the lower raceway. Leonard S. Fiore, Inc. established well points to dewater. Vertical turbine pumps outside of the oxygen injection building saturate the water with oxygen and into the raceways with side-stream injection.

Details and Awards

Total Square Feet

196,014

New Construction Square Feet

196,014

Site Acreage

4.5

Start Date

09/03/2014

Substantial Completion

04/01/2016

Address

162 Fish Hatchery Rd.
New Paris, PA 15554

Owner

Department of General Services
Harrisburg, PA 17125

Architect

C.S. Davidson, Inc.
York, PA 17401

Civil Engineer

C.S. Davidson, Inc
York, Pa 17401

Structural Engineer

Earthtech, Inc
Johnstown, Pa 15904

Consultant

Hazen & Sawyer
